Tool Documentation:

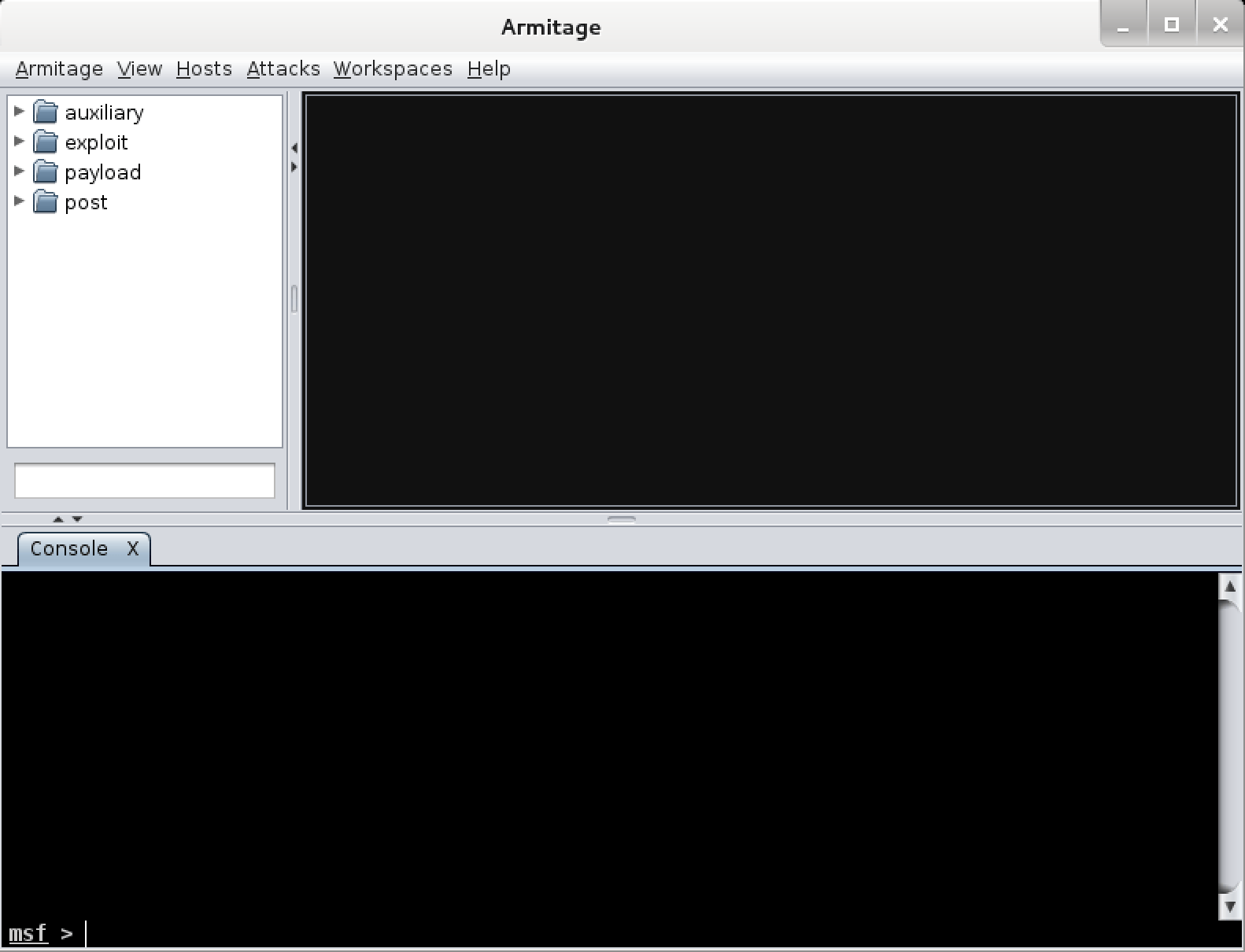

Screenshots

armitage

armitage Usage Example

root@kali:~# armitage
[*] Starting msfrpcd for you.

teamserver Usage Example

Start teamserver on the external IP (192.168.1.202) and set the server password (s3cr3t):

root@kali:~# teamserver 192.168.1.202 s3cr3t
[*] Generating X509 certificate and keystore (for SSL)
[*] Starting RPC daemon
[*] MSGRPC starting on 127.0.0.1:55554 (NO SSL):Msg...
[*] MSGRPC backgrounding at 2014-05-14 15:05:46 -0400...
[*] sleeping for 20s (to let msfrpcd initialize)
[*] Starting Armitage team server
[-] Java 1.6 is not supported with this tool. Please upgrade to Java 1.7
[*] Use the following connection details to connect your clients:
    Host: 192.168.1.202
    Port: 55553
    User: msf
    Pass: s3cr3t

[*] Fingerprint (check for this string when you connect):
    a3b60bef430037a6b628d9011924341b8c09081
[+] multi-player metasploit... ready to go

Packages and Binaries:

armitage

Armitage is a scriptable red team collaboration tool for Metasploit that visualizes targets, recommends exploits, and exposes the advanced post- exploitation features in the framework.

Installed size: 10.95 MB
How to install: sudo apt install armitage

Dependencies:
  • metasploit-framework
  • openjdk-11-jre
armitage
teamserver
root@kali:~# teamserver -h
[*] You must provide: <external IP address> <team password>
    <external IP address> must be reachable by Armitage
          clients on port 55553
    <team password> is a shared password your team uses to
          authenticate to the Armitage team server

Updated on: 2024-Mar-11
